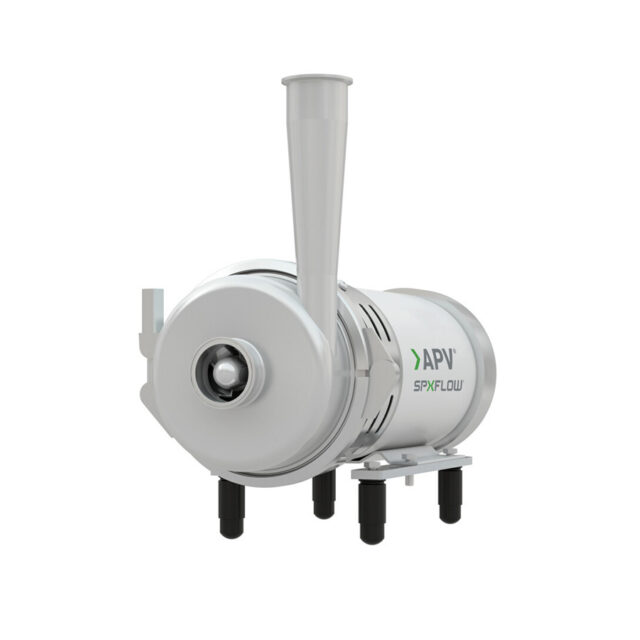

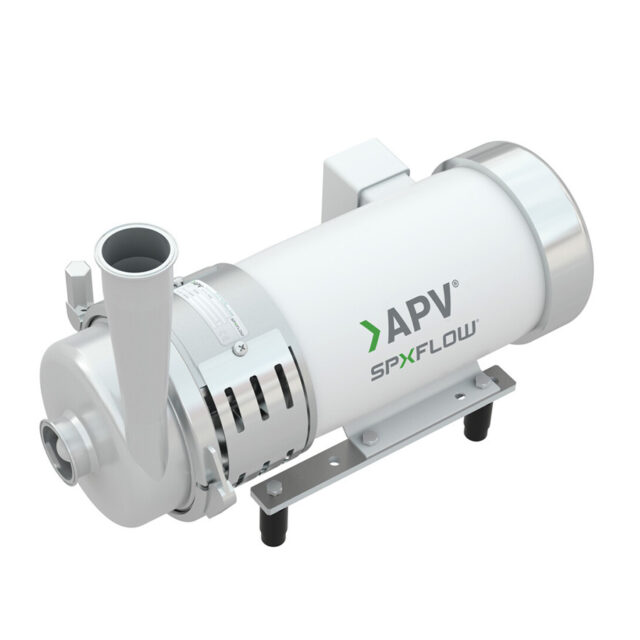

APV : W+ Series (NEMA)
W+ Centrifugal pumps are designed to achieve lifetime cost savings, lower energy consumption.
W+ centrifugal pumps from SPX FLOW are engineered for high efficiency and long-term cost savings. They are installed in countless process facilities around the world helping producers meet stringent production requirements. The W+ Pump runs with the same rugged reliability customers have come to expect from SPX FLOW products. Its versatile design helps increase process efficiency and maximise productivity.
Specifications
- Flow: up to 522 m³/hr
- Maximum pressure: up to 18 Bar (standard models). Up to 25 Bar (with heavy-duty clamping ring)
- Maximum head: up to 183m
- Maximum operating temperature: 95°C as standard
- Inlet size range: 1.5" to 6"
- Outlet size range: 1" to 4"
Applications
- Dairy
- Pharmaceutical
- Chemical/Industrial
- Bakery & Confectionary
Materials
- Stainless Steel casing, shaft and impeller
- Shaft seal: Carbon/Silicon Carbide. Optional: Silicon Carbide/Silicon Carbide
- Elastomers: FKM. Optional: EPDM, PTFE
Models
Multiple models available, covering a wide range of flow rates, pressures, and connection sizes.
