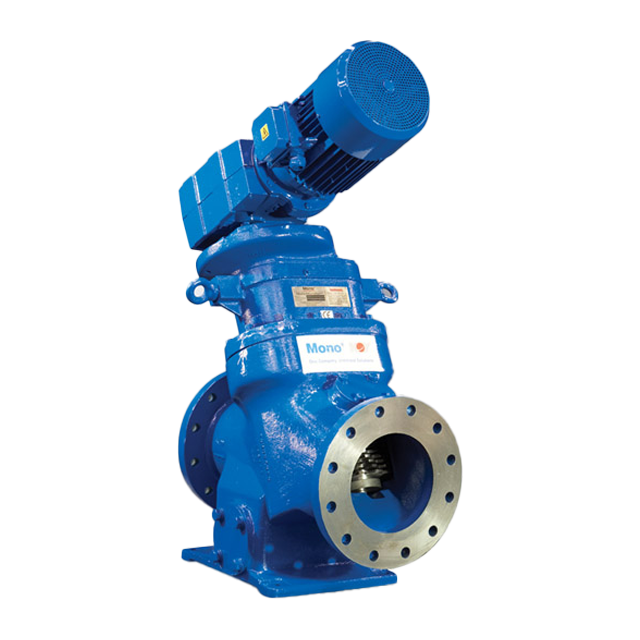

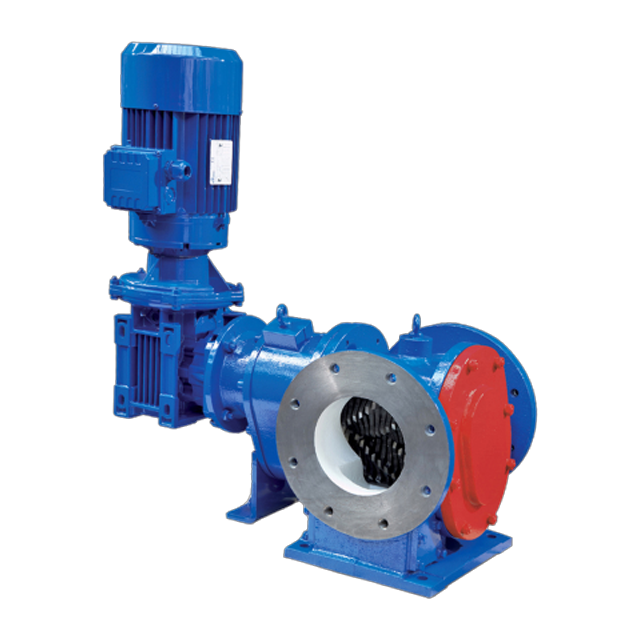

Mono : EZstrip TR Muncher

The latest generation twin shaft grinder.

Designed for efficient maceration of abrasive sludges. TR Muncher is very effective in capturing irregular shaped objects. The layback cutter shafts on this Muncher are set at an angle to the incoming flow. If a rejection cycle is necessary, the object can drop into the built-in trash trap set clear of and below the cutter stacks, preventing damage. The trash trap is fitted with a large diameter port to enable easy removal, cleaning and flushing.

The latest addition to the EZstrip™ family is the EZstrip™ TR Muncher. It includes the well-known CT203 and CT205, and now also the new CT201, the smallest unit in the series. With the TR Muncher range, the entire cutter stack can be removed from the housing as a cartridge, without needing to disconnect the unit from the pipework. In the case of the CT201 the cutters can also be inspected and removed through the front cover.

Key Features:

• Quick-release access for fast in-place maintenance
• Dual shafts with cutters and spacers provide positive displacement grinding
• High torque at low power (1.5–2.2 kW energy-efficient motors)
• Slow-speed operation for low wear, noise, and vibration
• Pull-back cutter stack allows removal without disturbing pipeline
• ETOS cutters for effective solids maceration
• Differential shaft speeds tear, crop, shear, or crush solids effectively
• Cantilever shaft design reduces wearing components
• Built-in trash trap with clean-out ports for rejected material
