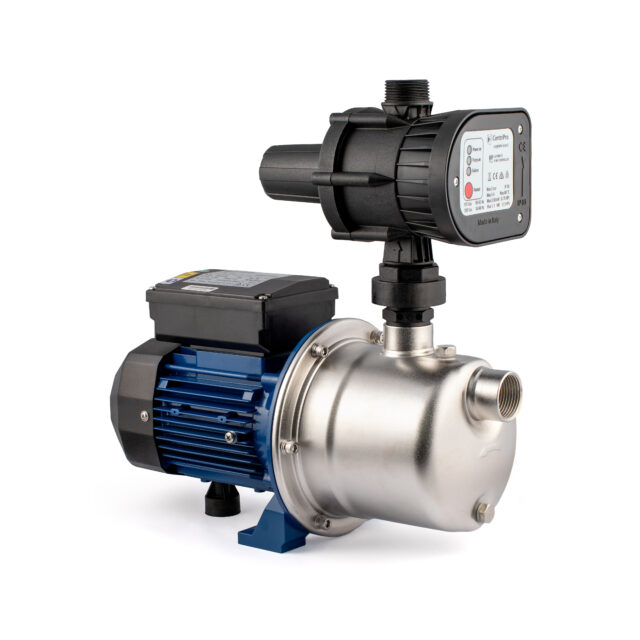

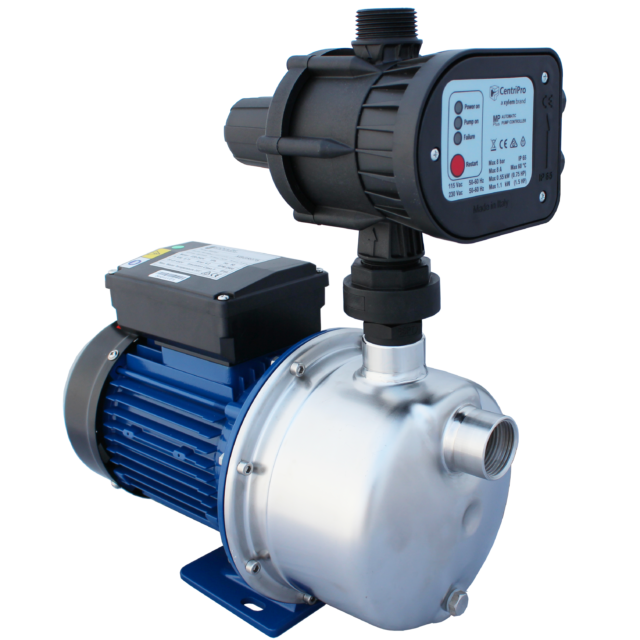

Goulds : XBGR Series
Self-Priming Jet Pump with CentriPro MP Plus Pump Controller
The ever reliable Goulds BGR has now got the X-Factor.
The Goulds XBGR Series self-priming centrifugal jet pump is designed to handle clean water in domestic applications. Coupled with the CentriPro MP PLUS automatic pump control, the XBGR is protected against dry running and will operate efficiently for years to come. The pump and control are AS4020 certified – suitable for drinking water applications.
The Goulds XBGR Series has a robust design with pressed stainless steel casing, 304 stainless steel impeller and an aluminium motor body. The pump is equipped with built-in ejector systems providing suction lift capability. This allows the pump to remain primed if there is air in the pumped water. Available in single-phase, 220-240V, 50Hz.
Key new features include:
- Auto reset controller
- Stainless steel impeller
- Plug & Play leads (no electrician required)
- RCM compliance mark
- AS/NZS 4020 Certified
Specifications
- Maximum operating pressure: 6 Bar
- Max Suction Lift: 8 to 9m
- Liquid temperature: +5°C to +35°C
- Maximum total head: 34m - 40m (3.4 - 4.0 Bar)
Applications
- Pressure Boosting
- Water Transfer
- Lawn & Garden Sprinkling
- Cistern Filling
- Rain Water Harvest
Materials
- Pump body: Pressed stainless steel
- Impeller: 304 stainless steel
- Motor body: Aluminium
Market Sectors
- Residential
- Commercial
Models
- XBGR050 with the CentriPro MP PLUS
- XBGR075 with the CentriPro MP PLUS
- XBGR100 with the CentriPro MP PLUS
Resources
- Goulds XBGR with MP Plus Controller Product Brochure (0.4Mb) Opens in new window
- Goulds XBGR + MP Plus Controller Installation and Start-up Instructions (0.29Mb) Opens in new window
- Goulds XBGR Pump Operating Manual (1.91Mb) Opens in new window
- CentriPro MP PLUS Controller Operating Manual (0.59Mb) Opens in new window
