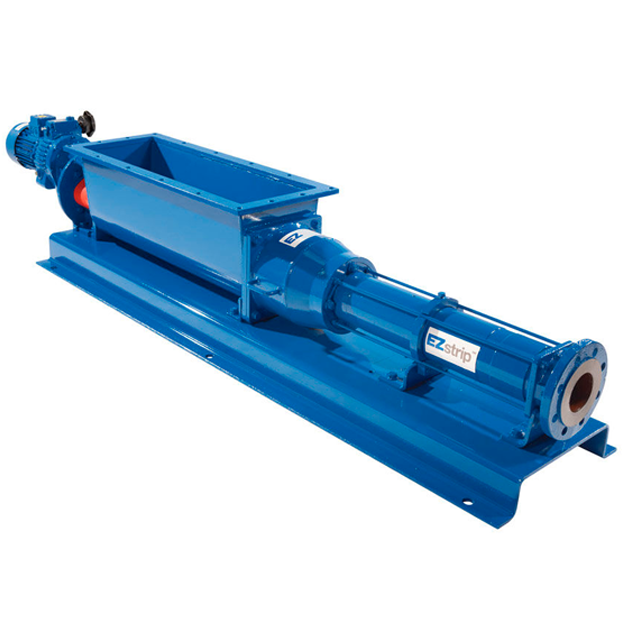

Mono : EZstrip Cake Pump
The EZstrip Widethroat pump is designed with a large auger inlet and screw conveyor to help provide consistent pumping.

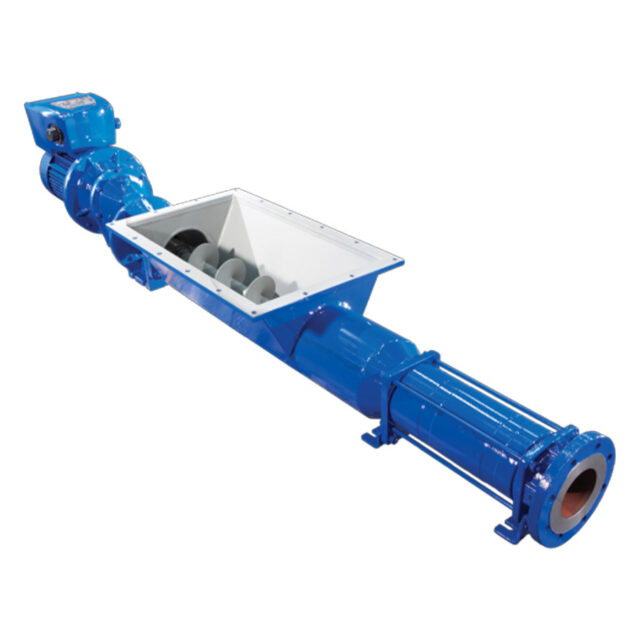

The EZStrip™ Widethroat W Range has been designed to handle highly viscous materials, such as sludges, slurries, thick non-flowing pastes and de-watered sludge cake with viscosities up to 1,000,000cP.

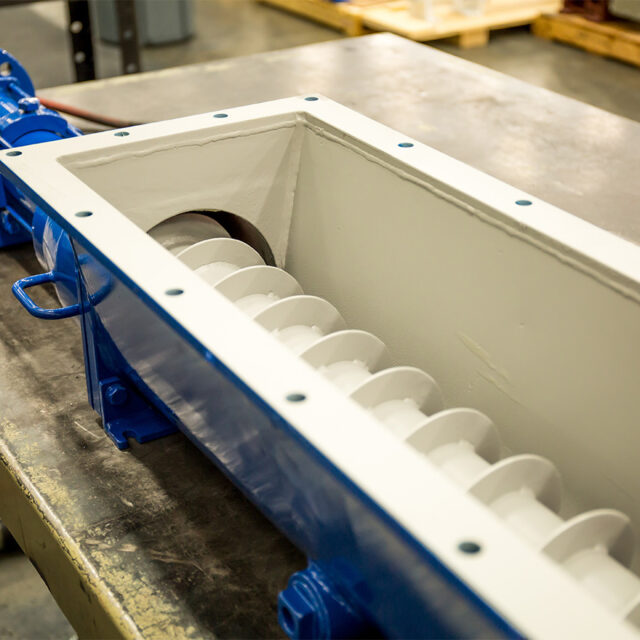

The standard design consists of an enlarged rectangular inlet with a screw conveyor to assist the product into the pumping element. Options are available to modify the inlet with either large diameter augers, integral bridge breakers or both.
Key Features:
- Efficient method of handling sludges with high solids content
- Different design configurations to suit the application; dry solids approaching 40% can be handled when fitted with integral bridge breakers or large augers
- Runs at relatively slow speeds to minimise damage to shear sensitive products
- Available as bareshaft or monobloc pumps
- Quick and easy to maintain in place without disconnecting suction and discharge pipework
- Can be supplied with a Muncher, horizontally mounted onto the hopper, to assist solids reduction prior to pumping
Specifications
- Delivery: up to 215m³/h
- Pressure: up to 48 bar
- Temperature: -5 °C up to +110 °C
- Max. viscosity: up to 1,000,000 cP
Applications
- Thickened sludge cake (up to 40% dry solids content)
- Dewatered sludge
- Sludge blending, including lime powder dosing and lime slurry dosing in conjunction with barrier layer injection
Market Sectors
- Municipal wastewater treatment
- Industrial wastewater treatment
- Agriculture/Biogas
Materials
The range is available in cast iron, with a choice of rotor and stator materials and a variety of hopper sizes.
Models
There are a range of models available to meet various application, flow and pressure requirements.
