Saveco : The BEAST
Next generation VFA septage receiving stations
Septage Receiving Stations are not only used for septage treatment but also for Fats, Oils and Greases (FOG) - when high temperature washwater is used. The station screens, washes, conveys, and dewaters screenings all in one unit, thus eliminating the need for multiple pieces of equipment.

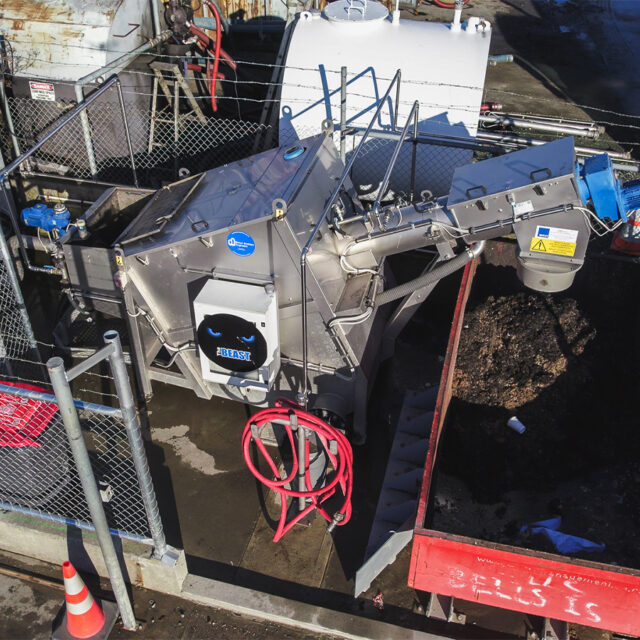

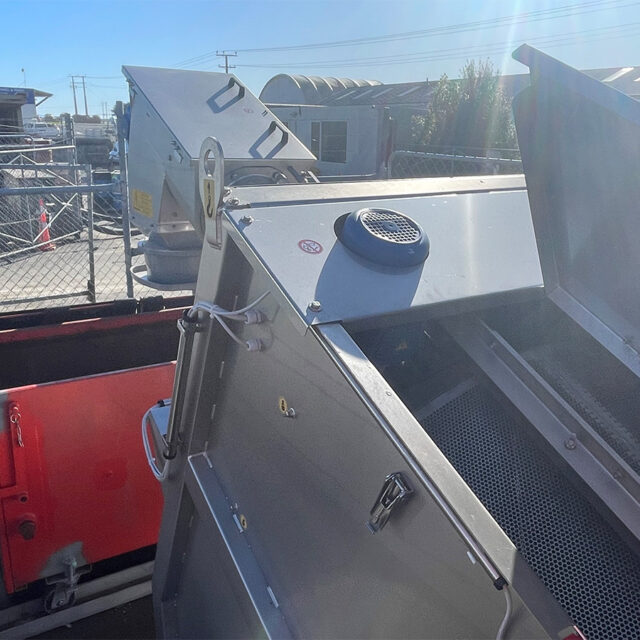

It consists of a dual motor drive system, a perforated plate drum screen complete with screw conveyor, and a compaction zone, all installed in a tank.
CASE STUDY: A local Council simplified its waste management, reducing network damage and maintenance and installation costs with New Zealand's first BEAST Septage Receival Screen. Read more here.
Product Features
- Engineered for large, heavy debris ladened liquid/solid separation applications requiring fast processing
- Compacts solids to 30% of original mass while reduced BOD loading from screenings minimises odour
- Dual motor drive system - drum and auger driven independently to optimise debris capture and removal
- Special two-stage tank design narrows the inlet and prevents sedimentation
- Drum screen tilted at a 25-degree angle to quickly capture and remove debris of 6mm or larger
- No support arms on influent side of the drum screen eliminates accumulation of rags and wipes
Specifications
- Inlet flows from 0-55 l/s
- Original screenings volume reduced by 30%
- 6mm perforated screen plate
- Drum screen incline angle: 25°
- 4 RPM drum speed and 10 RPM auger speed
- Average discharge time 1000 L/min
Materials
- Frame manufactured from 304 L / 316 L stainless steel
- Spiral manufactured from special ST 52 steel, optionally 304 L / 316 L stainless steel
