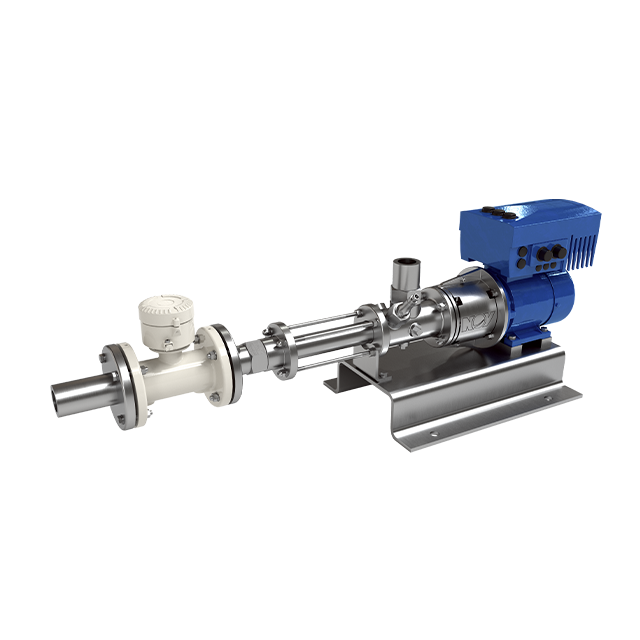

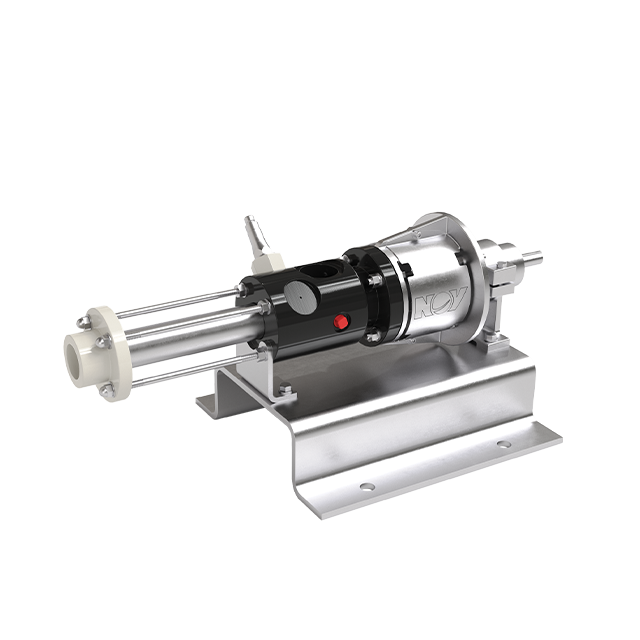

Mono : Dosing/Low Flow Metering Range
The Low Flow Metering range has high tolerance to aggressive chemicals, and is backed by the renowned reliability of Mono
The Dosing/Low Flow Metering pump has high tolerance to aggressive chemicals (0 – 14 PH). These pumps have a repeatability of ± 1%, and the gentle pumping action makes them ideal for pumping delicate, shear-sensitive products.
The Dosing/Low Flow Metering pump includes enhanced element offerings with improved precision metering control technology, reduced breakout torque, and excellent slow-speed performance. These elements help to expand the scope of metering applications for your customer, while still supplying each fluid with a smooth, pulsation-free flow.
Key Features:
- Handles abrasives, corrosives, solids in suspension, and viscous fluids
- Self-priming, high suction lift capability
- Fully sealed drive train maximises pump life and minimises downtime
- Low shear pumping action with low power consumption and operating costs
- No valves to clog, stick, or vapor lock
- Pressure capability is independent of speed
- Compatible with Integral VFD/Motor Controls
- Gearbox and motor options available include close coupled, long coupled, synchronous speed motor, fixed speed gearbox, and frequency inverter
Specifications
- Delivery: up to 1.84m³/h
- Pressure: up to 24 bar
- Temperature: up to +100 °C
- Highly repeatable accuracy
Applications
Acids, alkalis, and chemical processing (including flocculants and dyes/inks)Food, beverage, brewing, and winemaking (ingredients, flavorings, pastes, and gels)Cosmetics and pharmaceuticals (fillers, gels)Mining, pulp & paper (including titanium dioxide)Water and wastewater chemical injectionMaterials
All pump components, except the body, coupling rod and suction chamber are supplied in stainless steel. The suction chamber is manufactured in high-density polyethylene. The end cover and mechanical seal housing is PVDF. For severe chemical environments, internal pump components are supplied in Hastelloy.
