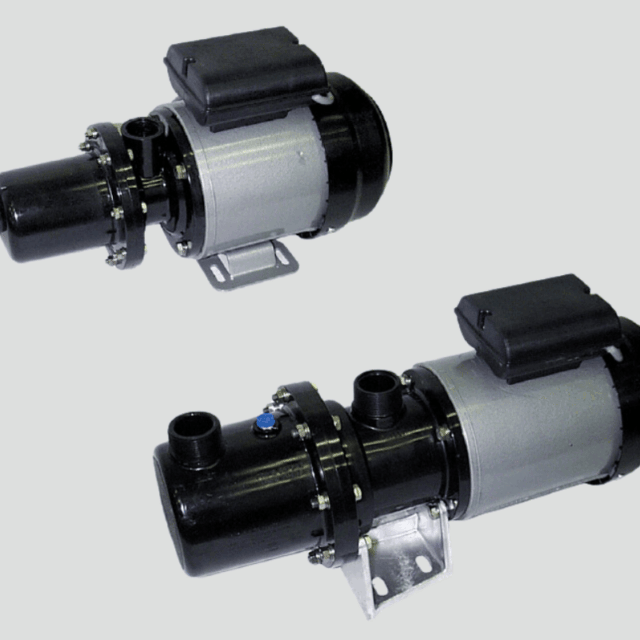

Mono : CP Range
Simple design. Sturdy lightweight construction. Conveniently compact.
Whether for domestic pumping requirements, or light industrial duties - the CP Series will keep up with the pressure of work!
The heart of the Mono Pump is the single helix metal rotor which rotates eccentrically within a double helix resilient stator of twice the pitch length of the rotor. The rotor of circular cross section creates a continuously forming cavity as it rotates. The cavity progresses towards the discharge end, advancing in front of a continuously forming seal line, carrying the pumped material with it. As the stator open cross sectional area is always constant the flow rate is continuous without pulsation.
Key Features:
- Four models with flows to 125 lpm (1650 GPH)
- Discharge heads to 28m (92 ft)
- Close coupled 1450 rpm single or three phase motors
- Three phase Star/Delta (6 wire) motors standard
- Bareshaft models available
- Stainless steel internal rotating parts
- Pump housings in tough, engineering grade acetal co-polymer plastic
- Brine injection package available
- Self priming to 6m (20 ft)
- Suitable for single phase frequency controllers.
Specifications
- Delivery: up to 125 L/min
- Head: up to 28m
- Motor options: 240v and 415v
- Maximum speed: 1450rpm
- Lead length: 2m (240v only)
Applications
- Milk, honey, fruit juice, wine, and other beverages
- Food colour, mustard, and condiments
- Domestic water supply and septic effluent
- Detergents and cleaning solutions
- Brine, molasses, and stock feed
- Oily water
Market Sectors
- Food & Beverage
- Water/Wastewater
- Industrial/Cleaning
Materials
Stainless steel internal rotating parts and fasteners
Stator options:
- Natural
- Nitrile (Standard)
- Hypalon
- High Nitrile
- Fluoroelastomer (CP11 and CP25 only).
Models
- CP11
- CP25
- CP800
- CP1600
All models operate on the well proven “progressive cavity” principle, and between them a variety of performance capabilities, up to a maximum capacity of 125L/min, and pressures of up to 28m.
