Salupo : Multiplus Control Boxes
The solution for all applications

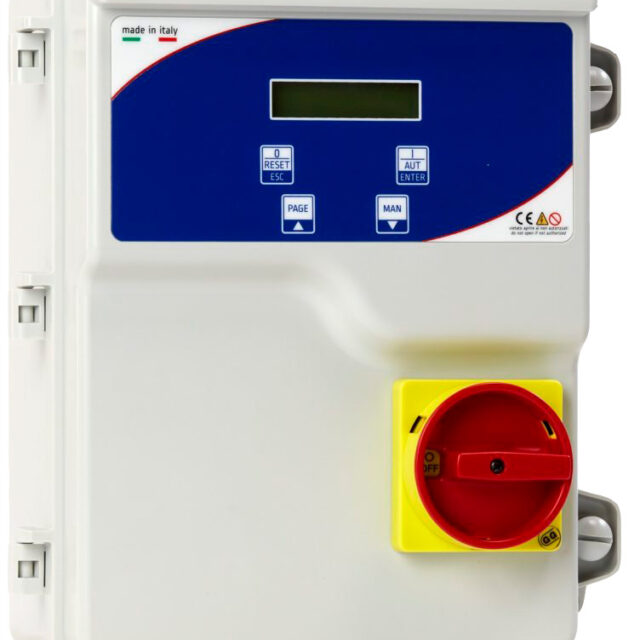

The Salupo MultiPlus is a direct starting electronic control panel suitable for use in dry running control, pressure booster, clean water and sewage applications. The Salupo Multiplus comes with an inbuilt display and general disconnecting switch with door lock.
Key Features:
- Single and dual pump operation
- Submersible level control or pressure systems
- Dry run protection, voltage protection and current protection
- Hour run meter
Specifications
- Operating Temperature: -5°C - 50°C
- Operating voltage 230Vac +15/-20% 50/60Hz (SA684 and SA694 models)
- Operating voltage 400Vac +15/-20% 50/60Hz (SA687 and SA697 models)
- Single-Phase up to 2.2kW / Three-Phase up to 7.5kW
Applications
- Clean water
- Sewage
- Pressure booster
Models
- SA684 - Multiplus 1PH Single pump
- SA687.02 - Multiplus 3PH Single pump
- SA694 - Multiplus 1PH Dual pump
- SA697.02 - Multiplus 3PH Dual pump
