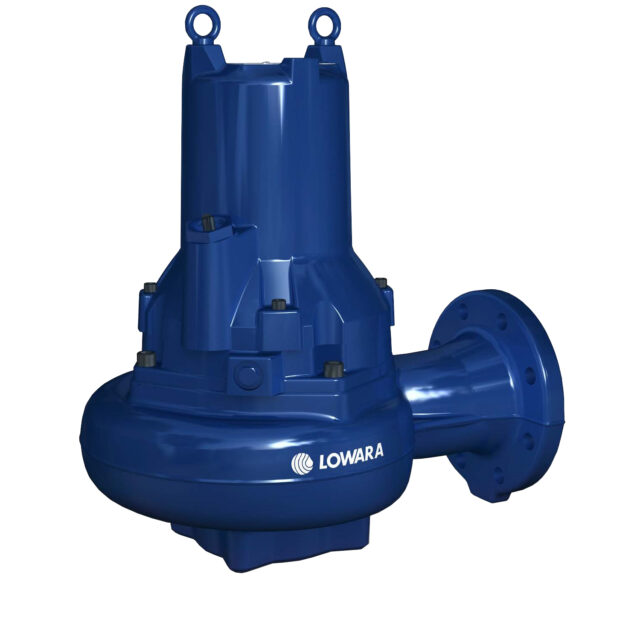

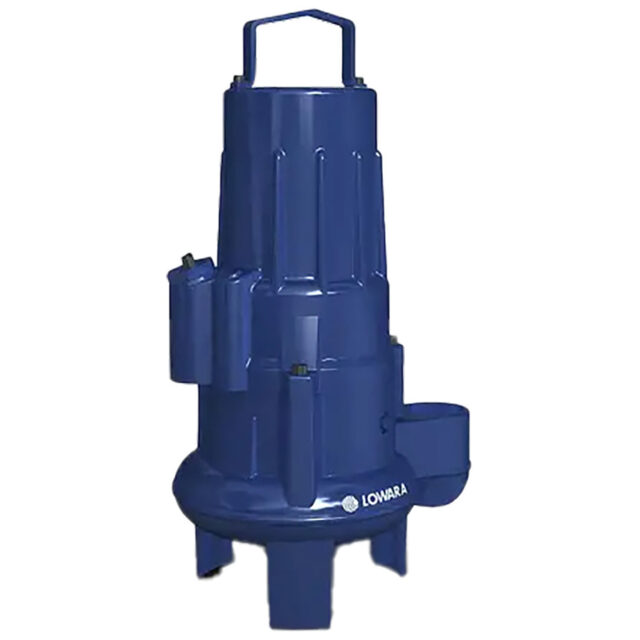

Lowara : 1300 Series
Submersible Non-Clog and Vortex Pump Range
The Lowara 1300 series submersible pump range delivers excellent performance and value. Based on technology developed and tested in tough environments, the hydraulic design reduces clogging and maintains efficiency for reliable operation. These pumps simply work and keep on working.
Key Features:
- Two versions - Non-Clog version and Vortex version
- Vortex impeller for maximum solids throughlet
- Three key models (1310, 1315, 1320)
- Available in Freestanding, Guiderail or Replacement
- Easy to ID curve numbers
- pH 5.5-14
- 3 Phase 1.2kW-7.5kW locally stocked and supported
- Double mechanical seal
- Sturdy cast iron construction
- 10m cable as standard
- European built and RCM compliant
Specifications
- Power: up to 7.5kW
- Head: up to 40m
- Capacity: up to 65 l/sec
- Maximum Fluid Temperature: 40°C
Applications
- Domestic sewage pumping stations
- Wastewater pumping stations
- Stormwater/flood pumping stations
- Drainage water
- Groundwater
- Dairy effluent transfer
Materials
- Impeller, Pump Housing, Stator Housing: Cast Iron
- Shaft: Stainless Steel
- O-rings, cable sheathing: Nitrile
- Inner mechanical seal: Cemented Carbide / Aluminium Oxide (1320 model: Carbon / Cemented Carbide)
- Outer mechanical seal: Carbon / Aluminium Oxide (1320 model: Carbon / Cemented Carbide)
Models
- 1310, 1315, 1320, 1325
- Available in Non-clog and Vortex versions
