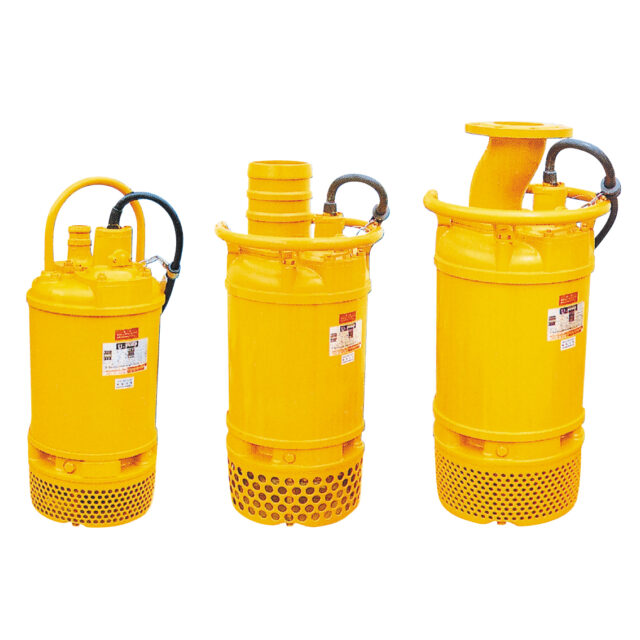

Sakuragawa : UC - UCF Series - Heavy Duty Dewatering Pump
Manufactured from corrosion resistant aluminium alloy or selected iron casting provide robust, heavy duty units.
The UC Series of Sakuragawa pumps is a light weight version manufactured from corrosion resistant aluminium alloy. The UCF Series has selected from iron castings. providing a more robust, heavy duty unit. Performance data is identical for both series.

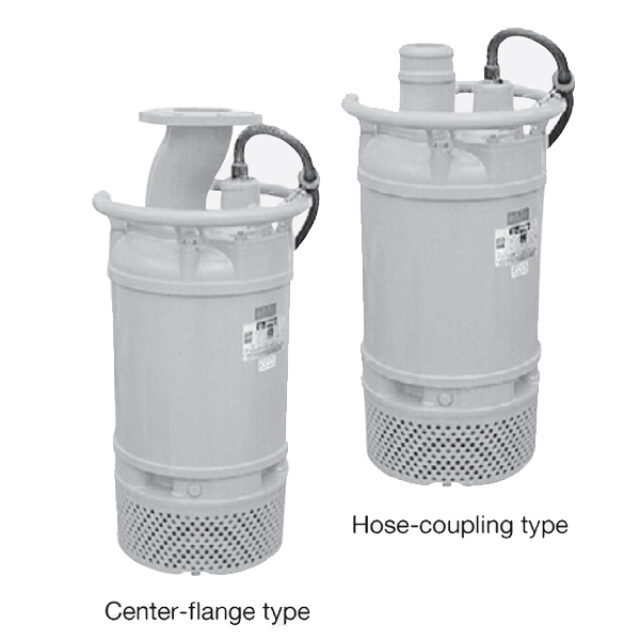

Can be supplied with hose tail and flange outlets.
Specifications
- Delivery: up to 6m3/min
- Head: up to 48m
- Power supply: three-phase and single-phase 50 and 60 Hz
- Power: 3.7kW to 22kW
- Discharge Dia:50mm to 200mm
- Submersion: up to 70m (with special mechanical seal)
- Length of cable:10m
Applications
- Tunnel and caisson dewatering
- Narrow trenches, manholes, pit and sump dewatering
- Irrigation
Materials
- Motor casings and head caps: UC have aluminium casting, UCF utilise case iron
- Impellers:
- Lower head units - hi chrome semi open impeller and rubber lined wear plate
- High head units - high chrome enclosed impellers and high chrome sealing rings
Market Sectors
- Civil engineering and construction
- Light industrial
- Municipal
- Mining
Models
- UC
- UCF
