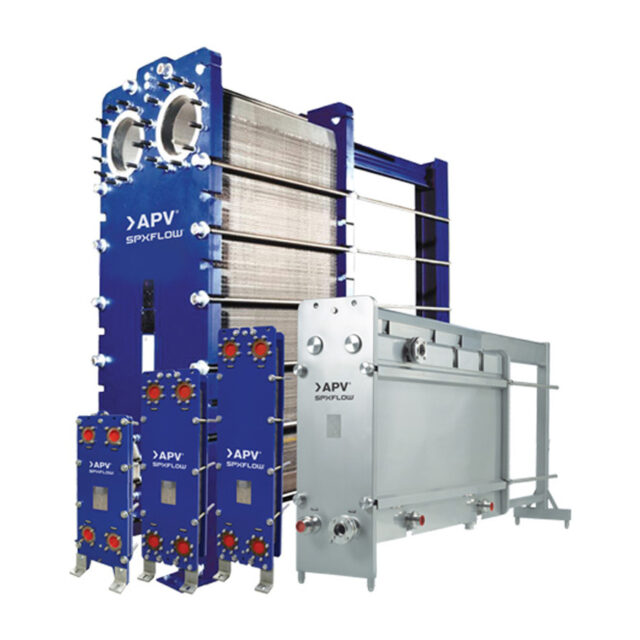

APV : ParaFlow Plate Heat Exchangers
Plate Heat Exchangers for Industrial Applications
Designed to meet diverse heat transfer demands - from compact systems to ultra-large flow rates up to 4500 m³/h - APV Industrial Plate Heat Exchangers offer performance-driven solutions for industrial environments worldwide.
Engineered for a wide range of global heat-transfer applications, APV Heat Exchangers handle flow rates from compact systems up to 4,500 m³/h, with a broad selection of materials, connections, and accessories for customised configurations.
Advanced Technologies:
APV® brand ParaWeld consists of plates welded in pairs using a patented laser welding process. Each second channel is secured by a welding, and the other channels by gaskets. Welded channels allow handling of aggressive and difficult media in plate heat exchangers.
Specifications
- Flow: Up to 4500 m³/h
- Maximum design pressure: up to 30 Bar
- Minimum operating temperature: down to -38°C
- Maximum operating temperature: up to 200°C
Materials
- Plates: AISI 316, AISI 904L, 254 SMO, Hastelloy, C2000, Titanium and Nickel
- Gaskets: NBR, EPDM, FPM, CR, CSP, TFEP
- Port Rings: PTFE lined option
Models
- SPX FLOW’s extensive selection of materials, connections, and accessories ensures customized equipment configurations for virtually every industrial heat transfer requirement.
