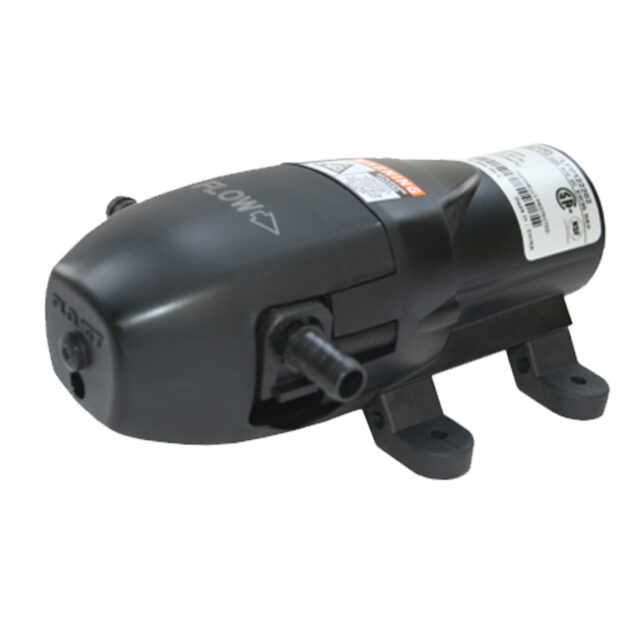

Flojet : LFP Pump
Low flow diaphragm pump
This low flow diaphragm pump is the ideal solution for many applications including spraying, fluid transfer, filtration, cooling, dispensing and pressure boosting.
- Sealed pressure switch automatically starts and stops pump when discharge valve opens and closes
- Self priming so pump can be located above supply tank
- Can run dry for extended periods of time without damage
- Built-in thermal protector
- Low amp draw for battery-powered applications
Specifications
- Amp draw: 2.5 Amp @ 25 PSI
- Flow rate: 3.78 LPM
- Maximum liquid temperature: 43°C
- Operating pressure: 40 PSI (2.75 Bar)
- Pressure switch setting: 25 PSI (1.7 bar)
Applications
- General industrial
- Chemical washdown
- Evaporative cooling systems
- Fluid transfer automotive
- Fluid exchange
- Agricultural
- Fogging/misting
- Boom sprayers
- Beverage dispense
- Beverage transfer
Materials
- Body materials: Polypropylene
- Materials of construction: Santoprene or Geolast Diaphragms
- Check valve spring: 316 Stainless steel
Models
- LFP
