Saer : IR Series
End suction close couples centrifugal pump
The Saer IR series is a close-coupled end-suction electric pump. Featuring a back pull out design, the IR series is suitable for re-circulation, heating and heat recovery systems, water supply facilities and pressurisation groups. Pumps and motors conform with 2009/125/CE Directive (ErP). Efficiency classes according to IEC 60034-30: IE2 and IE3.
Specifications
- Max Flow: 450m³/h
- Max Head: 129m
- Power: 0.37kW up to 45kW
- Protection: IP55
- Insultation: Class F
- Asynchronous induction
- 2 and 4 poles
- External ventilation (TEFC)
Applications
- Re-circulation
- Heating and heat recovery systems
- Water supply
- Pressurisation
Materials
- Pump Body: Cast Iron
- Impeller: Cast Iron
- Shaft End: Stainless Steel AISI 431 or Duplex
- Bi-directional Mechanical Seal
- Bi-component epoxy paint coating suitable for contact with drinking water.
Models

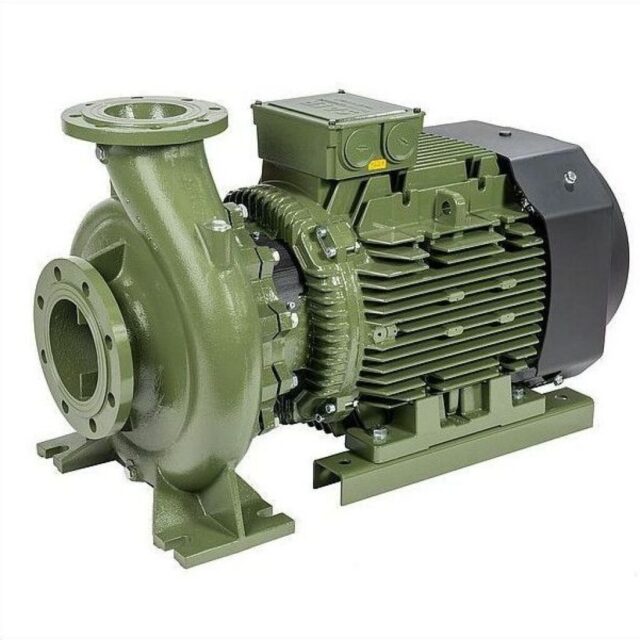

- IR: Standard

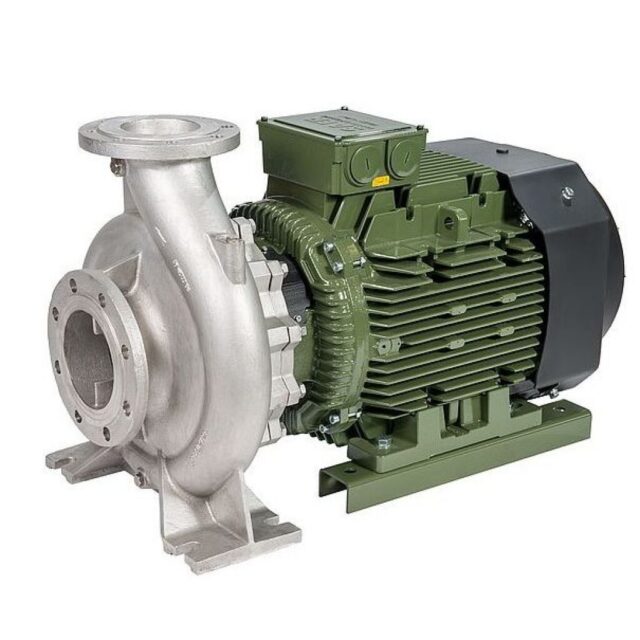

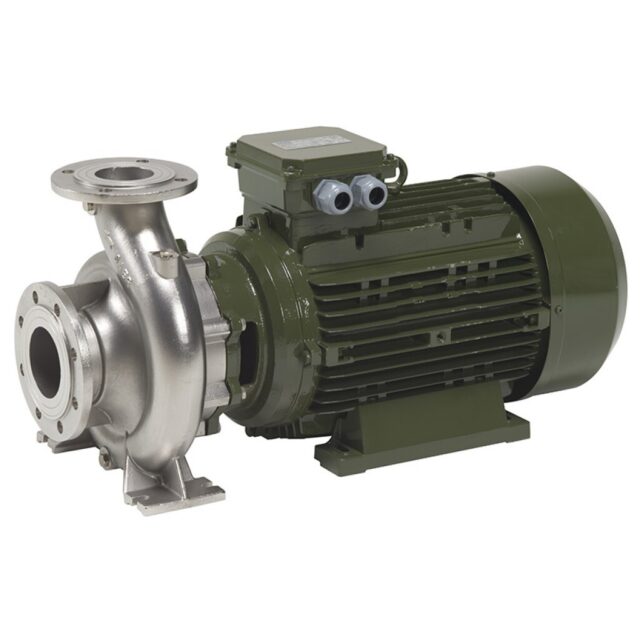

- IRX: Stainless Steel AISI 316 Version

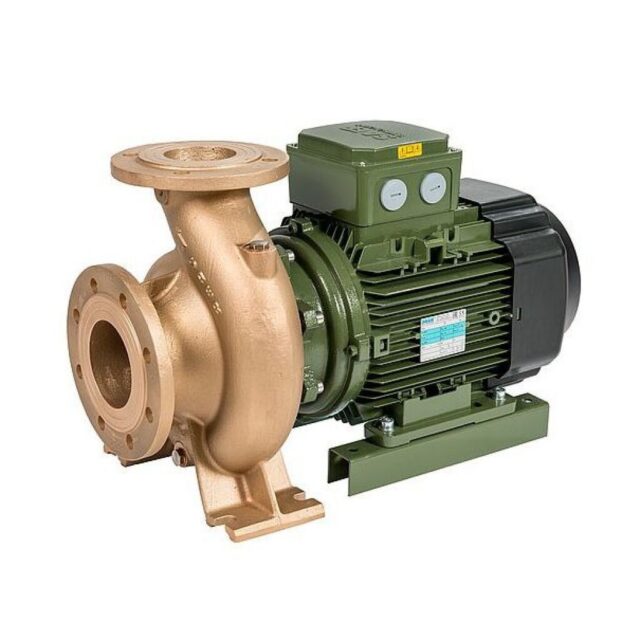

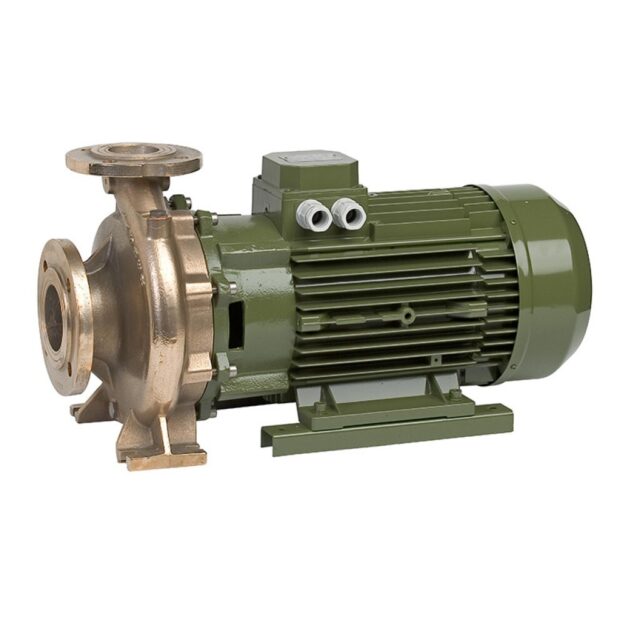

- IR-M: Marine Bronze Version
