Sandpiper : 2" Heavy Duty Flap Valve - Non-Metallic
Non-Metallic pump for mine dewatering and chemical transfers.

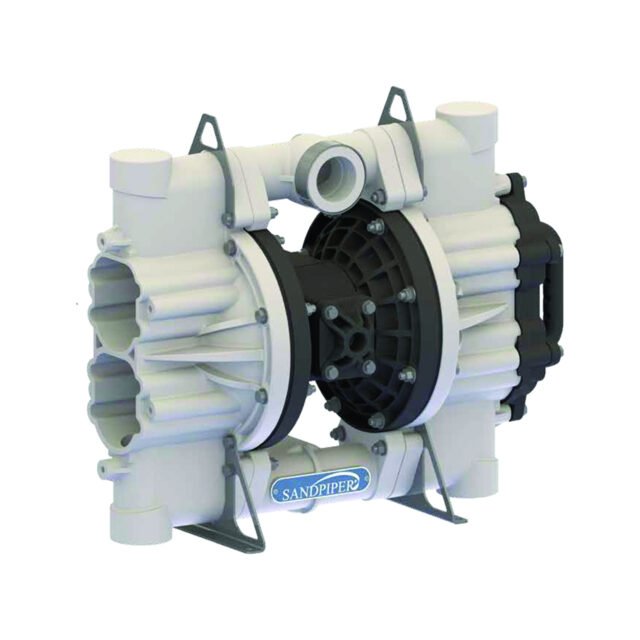

The Sandpiper 2" heavy duty non-metallic flap valve pump is a air-operated double diaphragm pump. It has been designed to handle challenges for mine dewatering, sump and chemical transfer applications. Featuring a robust lightweight design, this pump is portable and easy to maintain.
Features:
- Removeable cleanout cap
- Bottom discharge ported
- Best-in-class air consumption
- Less than 65 SCFM
- Optional flanged or threaded connection
Specifications
- Max capacity: 150 gpm (568 lpm)
- Max discharge pressure: 100 psi (7.0 bar)
- Pipe size: 2" NPT/BSP/ANSI/DIN flange
- Max solids handling: 1.8" (46 mm)
Materials
A variety of options:
- Conductive Acetal
- EPDM
- FKM (fluorocarbon)
- Hytrel
- Neoprene
- Nitrile
- Nylon
- Polypropylene
- PVDF
- Santoprene
- UHMW PE
- Urethane
- Virgin PTFE
- Alloy C
- Stainless Steel
Applications
- Mine Dewatering
- Sump
- Chemical Transfer
