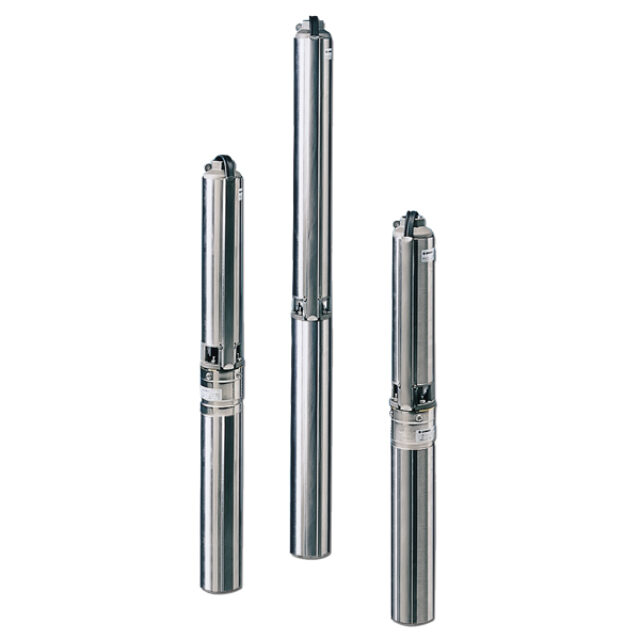

Lowara : e-GS Series 4” Submersible Pumps
Multi-stage centrifugal submersible pumps for clean water in 4" wells
The e-GS series is a robust 4” pump designed for long life. It’s built mainly in stainless steel, has casted discharge and a special floating impeller design to enhance the wear resistance and to maintain the performance over time.
The e-GS series is designed specially to be used in 4” wells and is ideal for use in irrigation systems, pressure boosting, geothermal systems and fountain applications.
All e-GS pumps can be coupled to 4" NEMA standard motors.
Specifications
- Delivery: up to 22 m³/h
- Head: up to 310 m
- Power supply: both single and three-phase 50 (60 Hz upon special request)
- Power: from 0.25 kW up to 7.50 kW
- Temperature of pumped liquid: to 35°C
- Maximum immersion depth: 300
- Max sand: 150g/m³
Applications
- Water supply
- Irrigation / Agricultural
- Mining / Drainage / Dewatering
- Fire-fighting
- Food & Beverage
- Geothermal
- HVAC
Materials
- Check valve type: Stainless steel
- Discharge head: Stainless steel
- Motor adaptor: Stainless steel
- Diffuser: PC / PPO + PS
- Bowl: Stainless steel
- Impeller: PC / PPO + PS
- Strainer: Stainless steel
- Hex shaft: Stainless steel
- Casing: Stainless steel
- Cable guard: Stainless steel
- Bearing: Engineered polymer
- Elastomers: NBR
Market Sectors
- Residential
- Agriculture
- Mining
