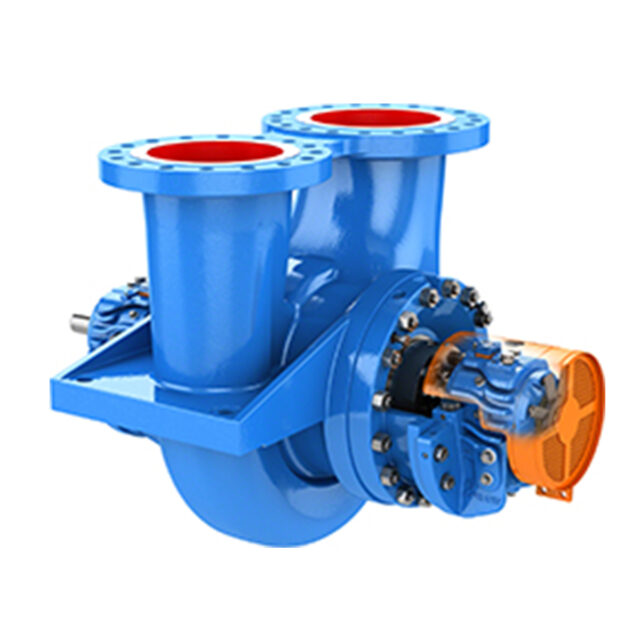

ITT-Goulds : 3620I API 610 Single Stage Radially Split Pump
Between bearings radially split process pump
The ITT-Goulds 3620i process pumps is designed for smooth, reliable operation and meets the requirements of ISO 13709/API-610 (BB2) completely.
Features:
- Double volute design - maximum reliability
- 360° mount - minimizes vibration levels
- i-FRAME Bearing Housing - fitted as standard
- i-ALERT monitoring as standard
- Renewable cartridge filter assembly - industry first
Specifications
- Capacities: Up to 4540m3/h
- Head: up to 455m
- Temperature: up to 425°C
- Pressure: up to 59 Bar
Applications
- Refinery: Tower bottoms, process feed, column reflux, circulation and pump around, process booster
- Power Plant: Boiler feed booster, boiler circulation, ash sluice
Materials
Available in a wide range of materials including all API 610 constructions and custom application needs.
