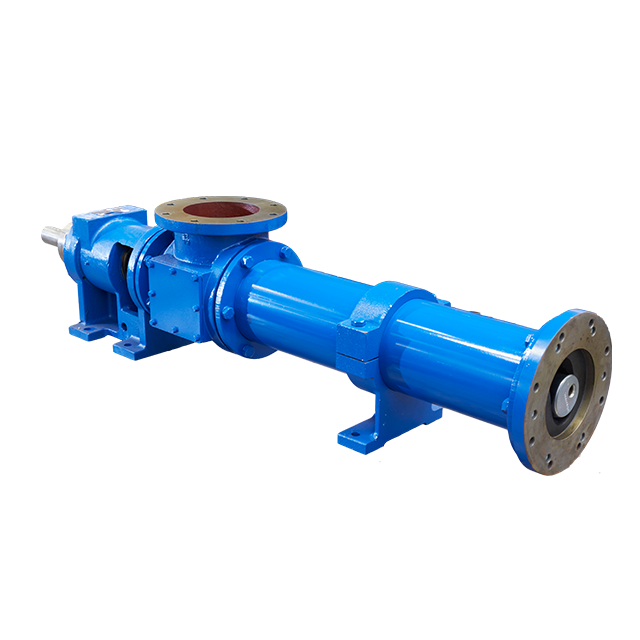

Mono : 2000 Series Range
The most rugged and reliable progressing cavity pumps on the market today
By incorporating advanced technology, superior design and proprietary manufacturing processes, the Mono 2000 Series Pumps offer the best value, and the most effective pumping solution for difficult and fluctuating conditions. The gear-type universal joint design effectively handles radial and thrust loads for maximum performance and long life.
Key Features:
- Low running speeds reduce wear for longer working pump life
- Quiet operation and low vibration
- Self priming with no special start-up procedures
- Independently driven bridge breakers for high viscosity, solids-laden fluids to eliminate products from bridging
- Open inlet configurations in 1,1.5, and 2 metre lengths to align with standard feed areas from centrifuges
- Shaft sleeve protects drive shaft from wear in highly abrasive applications
- Fiber deflector prevents ragging around the connecting rod and rotor head
- Mechanical seal only exposed to suction side pressure
- Standard flange and close-coupled models available
Specifications
- Delivery: up to 1,022m³/h
- Pressure: up to 103 bar
- Temperature: -10 °C up to +110 °C
Applications
Sewage lift stations, headworks, and sedimentation (primary/tertiary)Grit removal and dewateringNitrification, thickening, conditioning, and flocculantsMultiphase and slurry transfer (including starches, coatings, and adhesives)Chemical and polymer metering (including leaching/neutralization)Food and beverage processingLease automatic custody transferMaterials
Available in cast iron or stainless steel, with a choice of rotor and stator materials to suit individual applications e.g. hard chrome plated rotor or natural rubber stator.
Models
- 2000 G1 - Flanged Design
- 2000 G2 - Single Auger Feed
- 2000 G3 - Bridge Breaker
- 2000 G4 - 45° Inlet Design
- 2000 HS System
