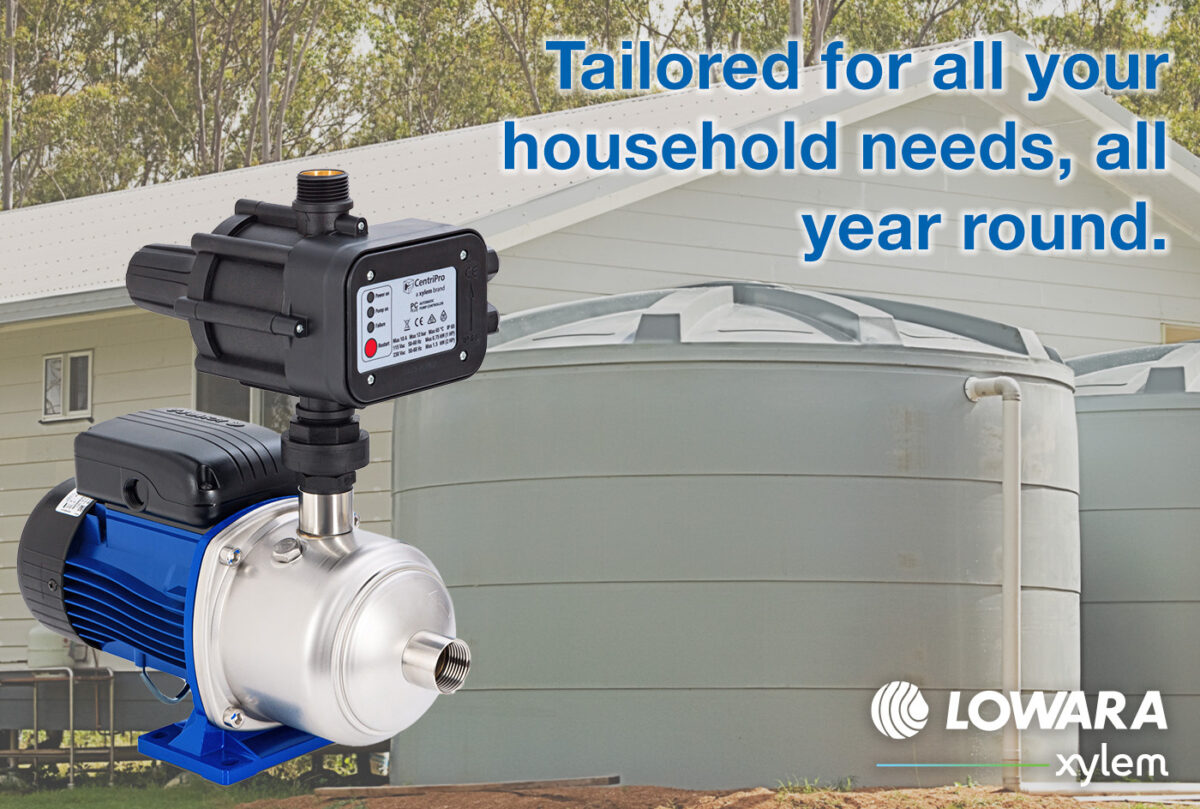

Reliable, Efficient, and Compact: Meet the Lowara e-HM Series

The e-HM range is tailored to suit your water needs. State of the art hydraulics with best in class efficiency combined with IE3 motors means the lowest operating costs.

The e-HM is a non-self-priming, end-suction horizontal multistage, high pressure centrifugal pump, with axial threaded inlet and radial threaded outlet. With a close-coupled design and equipped with non-standard Lowara motors, the e-HM range are highly modular pumps that are fitted with an innovative hydraulic design that secures high efficiency performances and an increased Mean Time Between Failure.

Key Features:

The e-HM series is a modern, robust designed pump offering:

• Built to last – No compromise on quality, thick stainless steel construction and highest quality bearings guarantees a long service life
• The motor – The latest technology built into the motor, this means IE3 efficiency standards along with Australian Standard Electrical Certifications ensure safety and efficiency is not compromised.
• The Pump – 30 years of continual product improvement puts the “working end” of the system in a class off it’s own. Hydraulically one of the most efficient pumps you could choose for your pumping application. AS/NZ 4020 compliant
• Whisper quiet – Even when operating at peak demand the noise levels from the e-HM range are very low thanks to the build quality and materials used.
• European Build Quality – Manufactured in Italy, Lowara’s 54 years of engineering quality and product design is respected across the globe.
• Huge range - The perfect solution for most buildings; from family houses up to 10 floor apartment buildings.

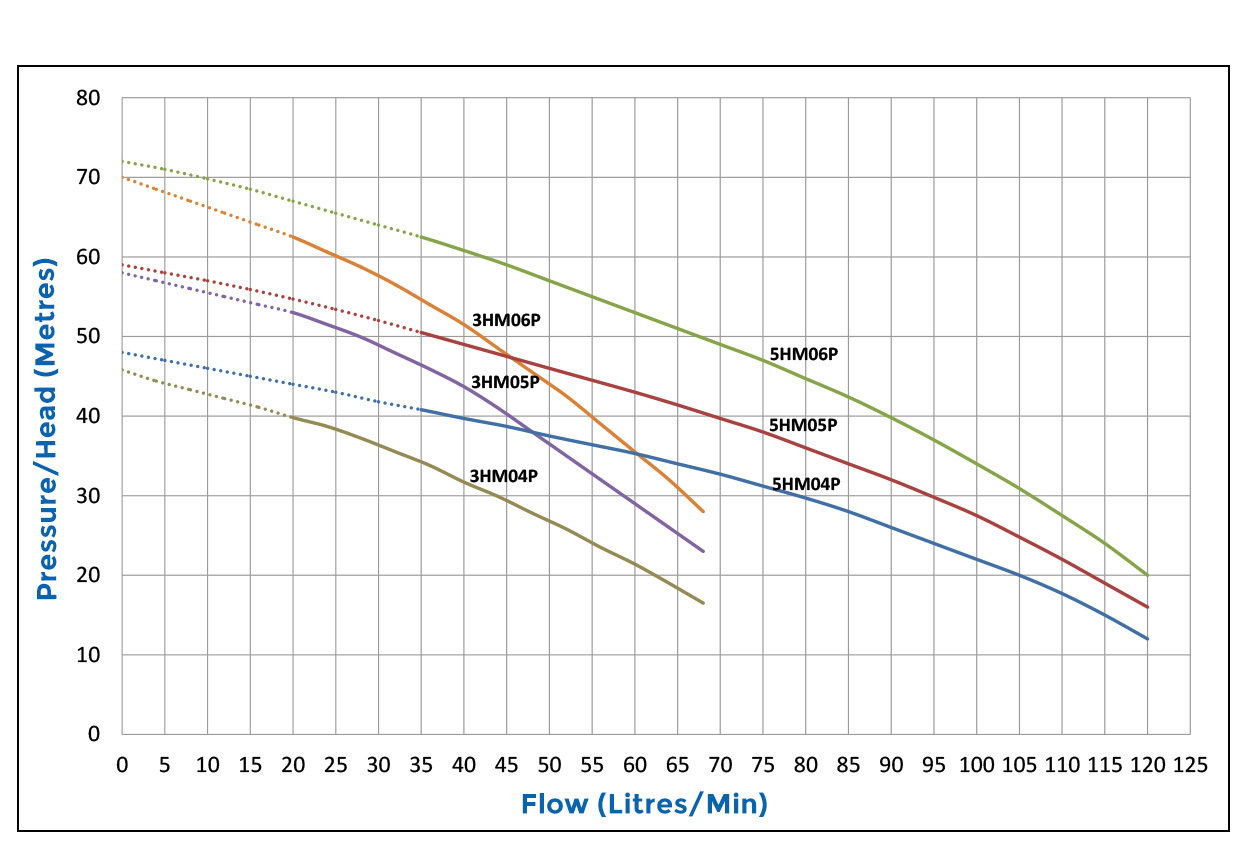

Specifications:

• Heads up to: 160m
• Flow up to: 29m³/h
• Power supply: both single and three-phase 50 and 60 Hz
• Power: 0.30kW to 5.50kW
• Maximum operating pressure: 16 bar
• Temperature of pumped liquid: -30 °C up to +120 °C (max. +60°C for single phase)

Contact your Area Sales Manager or nearest Brown Brothers Engineers branch to discover how the Lowara e-HM Series can work for your water needs.
